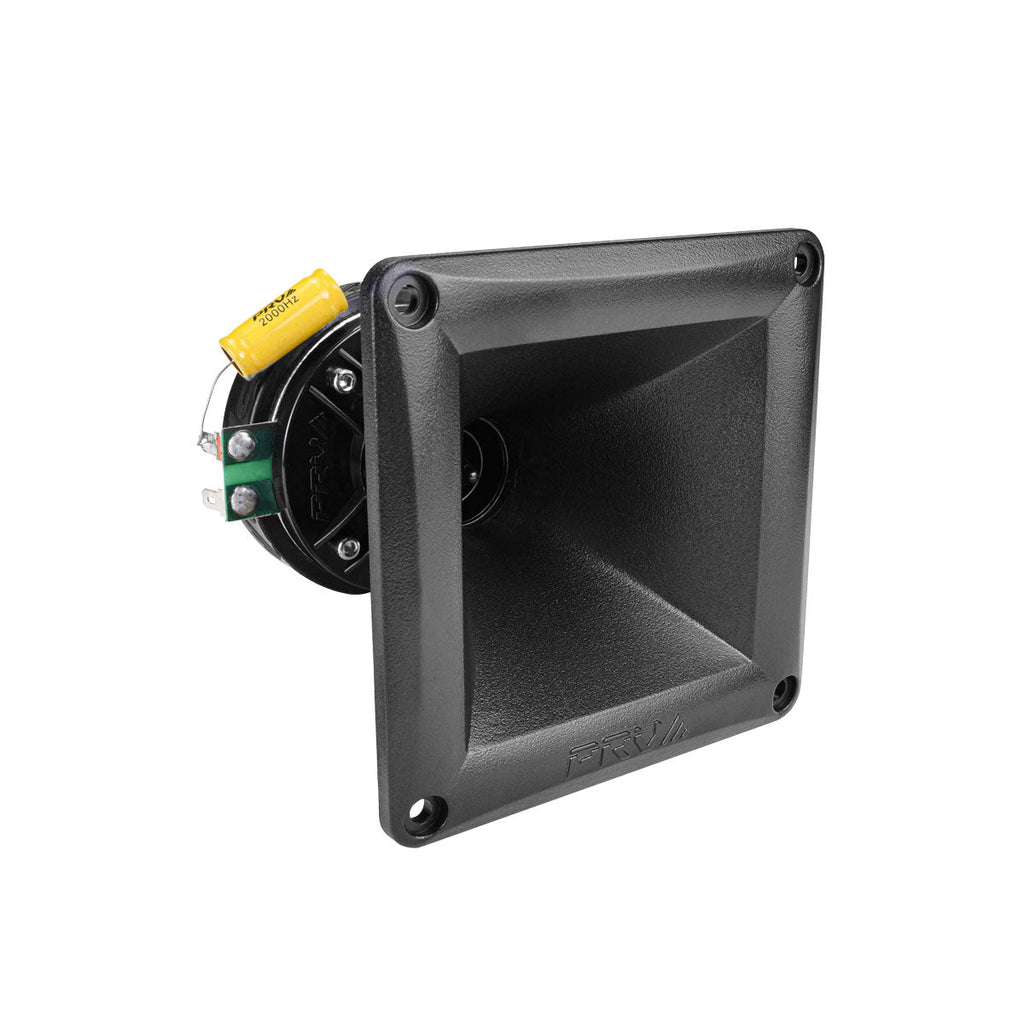

DRIVER PRV 1" WG175PH CON COPO
$29.99
Skip to product information
DRIVER PRV 1" WG175PH CON COPO
$29.99

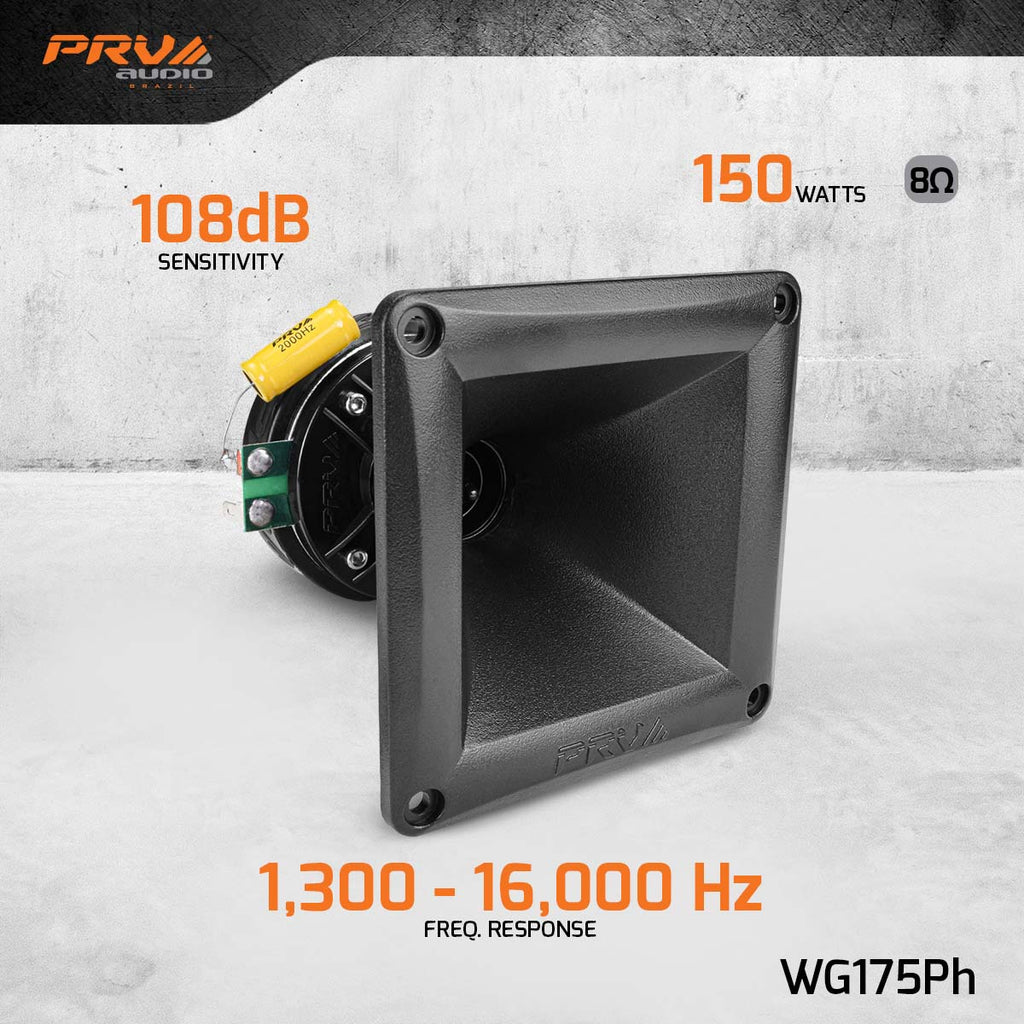

GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1” (25.4mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling | 75 Watts |
| Continuous Program Power (RMS) | 150Watts |
| Peak Power | 300 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 3000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 16,000 Hz |
| Voice Coil Diameter | 1″ (25.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.02 T |
| Magnet Material | Ferrite |
